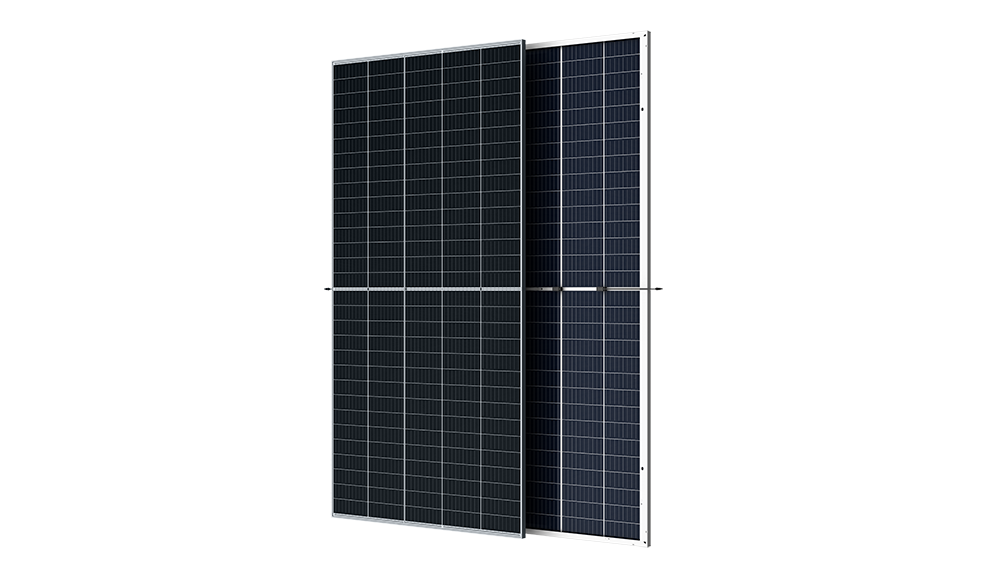

Trina Solar has formally unveiled its latest Duomax V bifacial double-glass modules and Tallmax V backsheeted modules. Based on the 210-mm large-size silicon wafer and monocrystalline PERC cell, the new modules come will have a high power output of more than 500 W and module efficiency up to 21%.
According to preliminary estimates from large-scale ground-mounted power stations in China’s Heilongjiang province, compared with conventional 410-W bifacial double-glass modules, the 500-W Duomax V can reduce the balance-of-system (BOS) cost by 6 to 8% and the levelized cost of energy (LCOE) by 3 to 4%. Trina Solar will formally start accepting orders in the second quarter of 2020 and is set to achieve mass production in the third quarter, with production capacity expected to exceed 5 GW by the end of the year.
Based on its multi-busbar technology, Trina Solar’s research and development team has introduced an innovative design that integrates advanced three-piece, non-destructive cutting and high-density packaging technologies. This further reduces the resistance loss and significantly improves the anti-cracking, anti-hot spot performance of the modules while maximizing space utilization. By doing so, the scientists created high-power modules characterized by high efficiency and high reliability. If the traditional half-cut cell design were applied to 210-mm ultra-large silicon wafers, the high current output characteristics of the modules could trigger system challenges, or cause the module to crack or run afoul of DC terminal limits.
In addition, the unique design of the new modules can ensure that the output current, open circuit voltage and mechanical load of the modules comply with relevant downstream technical safety specifications and can seamlessly connect with the existing mainstream PV system design.
“Trina Solar has accumulated decades of experience in module design and manufacturing. We hope to drive the standardization of modules through our design and manufacturing advantages, which will not only benefit many segments in the industrial chain, but also enhances the design commonality of modules on the system side,” said Trina Solar vice general manager and executive VP Yin Rongfang. “In addition to the product itself, a good module requires consideration of its matching capability with existing systems. Thanks to Trina Solar’s experience in tracking systems, integrated solution and ground power station projects, we explored and solved the potential challenges that could arise in the practical application of the system early in the research and development stage, and fully tapped the potential of the product. I believe our new modules will bring the photovoltaic market to the next stage.”
News item from Trina
Moustafa says
Considering it’s only 21% efficient would mean this 500W module is actually 2.5 meters squared, or 25% larger than a nominal 72 cell module. So basically they are stuffing more silicon in a module. Would you agree?
