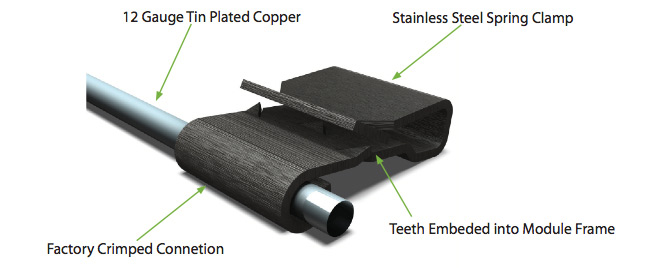

The DynoRaxx DynoBond is a UL-recognized design used as a jumper between modules and rows, making the module frames the medium for the equipment ground path. The DynoBond replaces the conventional method of installing one ground lug per solar module and running a solid six gauge copper wire bonding the modules. The DynoBond is engineered for commercial and residential applications.
The DynoRaxx Dynobond is UL-recognized to 467 and 2703.
DynoBond Facts:
- No tools are required to install, as it’s just pushed onto the bottom flange of a panel.
- It supports flange thicknesses from 1.2mm to 3.1mm.
- Wires are almost completely hidden from view.
- The system is corrosion resistant with stainless steel clips and tin-plated copper wire.
DynoRaxx
www.dynoraxx.com
